Fsas PRIMEFLEX for Nutanix (PRIMERGY M8) – wersja PYR2538Z01

XF1070 M8 · numer części PYR2538Z01 · model Fsas PRIMEFLEX for Nutanix (PRIMERGY M8)

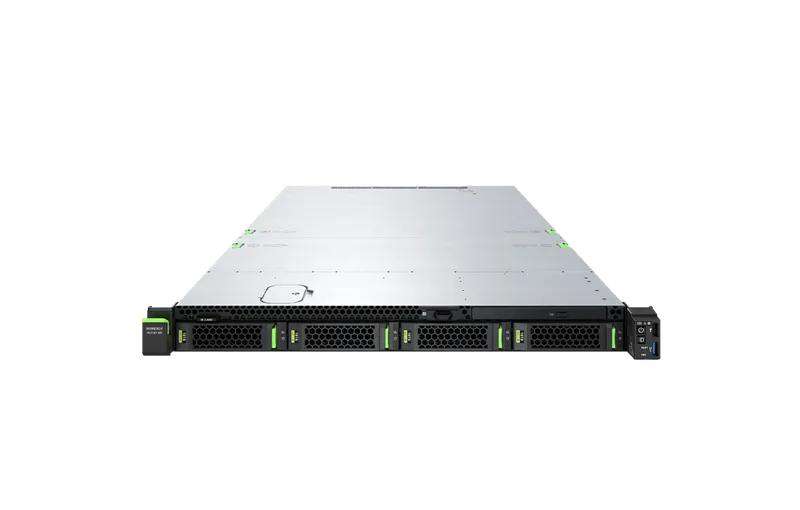

Zdjęcie poglądowe

Wersja XF1070 M8 – najmniejszy węzeł rodziny PRIMEFLEX for Nutanix na platformie M8.

Rodzina węzłów PRIMEFLEX for Nutanix opartych na serwerach PRIMERGY M8, dostępna w sześciu wersjach bazowych XF1070, XF3070 i XF8050. Węzły działają z procesorami Intel Xeon 6 (od 8 do 32 rdzeni w przykładowych pozycjach) i pamięcią DDR5-6400 RDIMM lub DDR5-8800 MRDIMM w modułach od 16 GB do 128 GB. Obsługują dyski HDD i SSD 3,5″ i 2,5″, dyski NVMe PCIe5, startowe M.2 w kontrolerze PDUAL CP300 oraz karty sieciowe OCP v3 i PCIe od 10 Gb/s do 100 Gb/s.

Gwarancja standardowa

Czas reakcji / naprawy	not defined
Dodatkowe	none
Gwarant	FTS wide / FTS
Kod	FSP:GN3S000STDWPX2
Kraj	POL
Miejsce naprawy	On-Site Service
Okres gwarancji	3 years
Przyjmowanie zgłoszeń	5 days / 9 hours (9x5, local business hours)

Komponenty i opcje

Approvals/dependencies (4)

Configuration Thermal Design 30°C PYBETA6
ErP Lot9 Configuration 1 PYBETL38
ErP Lot9 Configuration 2 PYBETL39
ErP Lot9 Configuration 3 PYBETL40

Processor (22)

Intel Xeon 6507P 8C 3.5 GHz PYBCP70X7
Intel Xeon 6505P 12C 2.2 GHz PYBCP70X1
Intel Xeon 6511P 16C 2.3 GHz PYBCP70XP
Intel Xeon 6515P 16C 2.3 GHz PYBCP70X2
Intel Xeon 6517P 16C 3.2 GHz PYBCP70X8
Intel Xeon 6520P 24C 2.4 GHz PYBCP70X3
Intel Xeon 6521P 24C 2.6 GHz PYBCP70XQ
Intel Xeon 6527P 24C 3.0 GHz PYBCP70X9
Intel Xeon 6530P 32C 2.3 GHz PYBCP70X4
Intel Xeon 6730P 32C 2.5 GHz PYBCP70XC
Intel Xeon 6731P 32C 2.5 GHz PYBCP70XR
Intel Xeon 6737P 32C 2.9 GHz PYBCP70XA
Intel Xeon 6745P 32C 3.1 GHz PYBCP70XV
Intel Xeon 6736P 36C 2.0 GHz PYBCP70XB
Intel Xeon 6740P 48C 2.1 GHz PYBCP70X5
Intel Xeon 6741P 48C 2.5 GHz PYBCP70XS
Intel Xeon 6747P 48C 2.7 GHz PYBCP70XD
Intel Xeon 6760P 64C 2.2 GHz PYBCP70X6
Intel Xeon 6767P 64C 2.4 GHz PYBCP70XE
Intel Xeon 6761P 64C 2.5 GHz PYBCP70XT
Intel Xeon 6781P 80C 2.0 GHz PYBCP70XU
Intel Xeon 6787P 86C 2.0 GHz PYBCP70XF

Memory Modules -> Installation mode (1)

Independent Mode Installation PYBMMD2

Memory Modules -> Registered (8)

16GB (1x16GB) 1Rx8 DDR5-6400 R ECC PYBME16ST
32GB (1x32GB) 1Rx4 DDR5-6400 R ECC PYBME32ST2
32GB (1x32GB) 2Rx8 DDR5-6400 R ECC PYBME32ST
32GB (1x32GB) 2Rx8 DDR5-8800 MR ECC PYBME32SU
64GB (1x64GB) 2Rx4 DDR5-6400 R ECC PYBME64ST
64GB (1x64GB) 2Rx4 DDR5-8800 MR ECC PYBME64SU
96GB (1x96GB) 2Rx4 DDR5-6400 R ECC PYBME96ST
128GB (1x128GB) 2Rx4 DDR5-6400 R ECC PYBME12ST

Drives -> SSD 3,5″ LFF (2)

SSD SATA 6G 1.92TB MU 3.5' H-P PYBTS19NKB
SSD SATA 6G 3.84TB MU 3.5' H-P PYBTS38NKB

Drives -> HDD 3,5″ LFF (5)

HDD SAS 12G 12TB 7.2K 3.5' H-P PYBCHCT7BB
HDD SAS 12G 16TB 7.2K 3.5' H-P PYBCHGT7B8
HDD SAS 12G 20TB 7.2K 3.5' H-P PYBCHLT7B5
HDD SAS 12G 6TB 7.2K 3.5' H-P PYBCH6T7BB
HDD SAS 12G 8TB 7.2K 3.5' H-P PYBCH8T7BC

Drives -> Boot Drives (1)

PDUAL CP300 LP PYBDMCP35L

Drives -> SSD M.2 (4)

SSD PCIe4 480GB M.2 H-P PYBMF48PN
SSD PCIe4 960GB M.2 H-P PYBMF96PN
SSD PCIe4 480GB M.2 N H-P PYBBS48PEA
SSD PCIe4 960GB M.2 N H-P PYBBS96PEA

SAS HBA /RAID Controller -> RAID PRESET option (1)

pre-config. RAID1 Array for M.2 in PDUAL S26361-F5659-E13

SAS HBA /RAID Controller -> SAS Controller (1)

PSAS CP 2200-16i LP PYBSC4MA1L

Adapters and Cables (3)

M.2 Carrier Module (Slot 2) PYBPREM06
Riser w/cable kit for PCIe x8 (Slot 2) PYBPRE861
Riser w/cable kit for PCIe x8 (Slot 3) PYBPRE862

Ethernet Controller -> 1G/10G OCP (6)

PLAN EP N210P 2X 10G SFP+ OCPV3 PT PYBLA3J2U
PLAN EP N210TP 2X 10GBASE-T OCPV3 PT PYBLA3K2U
PLAN EP X710-T4L 4x10GBASE-T OCPV3 PYBLA344U
PLAN EP X710-T2L 2x10GBASE-T OCPV3 PYBLA342U
PLAN EP X710-DA2 2X 10G SFP+ OCPV3 PYBLA352U
PLAN EP X710-DA4 4X 10G SFP+ OCPV3 PYBLA354U

Ethernet Controller -> 25G OCP (2)

PLAN EP E810-XXVDA2 2X 25G SFP28 OCPV3 PYBLA402U
PLAN EP E810-XXVDA4 4X 25G SFP28 OCPV3 PYBLA404U

Ethernet Controller -> 100G OCP (1)

PLAN EP N2100G 100Gb 2p QSFP56 OCPv3 PYBLA452U

Ethernet Controller -> 1G/10G PCIe card (2)

PLAN EP P210P 2x10Gb SFP+ LP PYBLA3J2L
PLAN EP P210TP 2X 10GBASE-T PCIe LP PYBLA3K2L

Ethernet Controller -> 25G PCIe card (2)

PLAN EP E810-XXVDA2 2X 25G SFP28 PCIe LP PYBLA402L
PLAN EP MCX6-LX 25Gb 2p SFP28 PCIe LP PYBLA402L4

Ethernet Controller -> 100G PCIe card (1)

PLAN EP P2100G 100Gb 2p QSFP56 PCIe LP PYBLA442L

Ethernet Controller -> Optical Transceivers (8)

QSFP28 100G LR4 FTLC1154RDPL LC PYBSFPL08
QSFP28 100G LR4 MMA1L10-CR LC PYBSFPL11
SFP28 25G LR E25GSFP28LRX LC PYBSFPL09
SFP+ Module Multi Mode Fiber 10GbE LC S26361-F3986-E3
SFP+ Transceiver 10G/1G Dual Rate SR S26361-F3986-E5
SFP+ Transceiver 10G/1G Dual Rate LR S26361-F3986-E6
SFP28 Transceiver 25G SR LC 850nm S26361-F4055-E701
QSFP28 Transceiver 100G SR4 MPO 850nm S26361-F4052-E701

Rack-Infrastructure (2)

Rack Cable Management Arm 1U PYBRA06
Rack Mount Kit QRL PYBRR0C

Country kits (1)

Region Kit for Europe Lot9 PYBSVTR2

PRIMERGY-Software -> Manageability Software (2)

iRMC advanced pack PYBRMC44
iRMCS6 eLCM Activation License preloaded PYBLCM14

UPS/Power supply -> Power Supply (4)

Modular PSU 1600W titanium hp PYBPU165
Modular PSU 2400W titanium hp PYBPU243
Modulare SV DC -48V 1300W Platinum PYBPU131D
Modular PSU 900W titanium hp PYBPU901

UPS/Power supply -> Power Cable (7)

Cable powercord -48V DC PYBCBPDC4
Cable powercord rack, 1.8m, black T26139-Y1968-E180
Cable powercord rack, 2.5m, black T26139-Y1968-E250
Cable powercord rack, 4m, black T26139-Y1968-E100
Cable powercord USA 15A, 1,8m, black T26139-Y1741-E90
No powercord as order option T26139-Y3850-E10
Power cord IEC320 C19 -> US NEMA L6-20p S26361-F3151-E500

Miscellaneous (1)

TPM 2.0 Module V2 PYBTPM20

Inne wersje bazowe tego modelu

XF3070 M8 PYR2538Z02
XF3070 NVMe M8 PYR2538Z03
XF8050 M8 PYR2548Z01
XF8050 NVMe M8 PYR2548Z02
XF8050 GPU M8 PYR2548Z03
